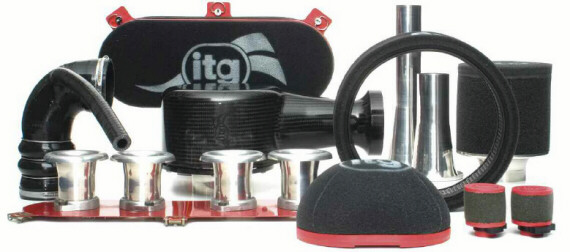

ITG Air Filters

PIC2

PIC

itg were probably the first company to manufacture a truly durable, high performance foam-based production air filter.\n\nWhy foam? Because, compared to paper or other filter technologies, reticulated polyester foam achieves optimum performance against three key criteria:\n\nMaximum Air Flow - the ability to allow air to pass through without causing a large drop\nin pressure.\n\nCleaning Efficiency - the capability to arrest a high proportion of airborne dust while feeding the engine clean air.\n\nDust Load-up Tolerance - the capability to absorb a large amount of dust without reducing air flow capacity.\n\nWith our unique Tri-Foam System, which uses various thicknesses of finer or coarser foams, these factors can be varied for different applications.\n\nTri-foam gives us the flexibility to produce air filters to exact specifications and, where high flow rates are possible, we can tailor filters to arrest even the slightest dust traces.\n\nCompared to other designs, itg filters offer many additional advantages, including a significant reduction in noise while providing more power for longer.\n\nWhat's more, because we use the very latest adhesive technologies to bond the foam layers, itg filter assemblies are totally resistant to water, fumes, oils and fuels - including the exotic brews used in racing.\n

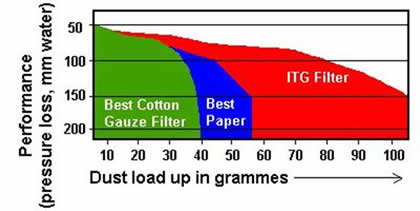

GRAPH

Maxogen Air Filter 67mm Maxogen Air Filter 67mm Ref: JC60/67
I/D Neck Fitting (A) - 67mm/ - 2" 5/8
O/D Neck Fitting (B) - 70mm/ - 2" 3/8
Filter Diam (C) - 149mm
Neck Length (D) - 54mm
Overall Length (E) - 194mm
BHP Rating - 270







Maxogen Air Filter 73mm Maxogen Air Filter 73mm Ref: JC60/73
I/D Neck Fitting (A) - 73mm/ - 2" 7/8
O/D Neck Fitting (B) - 76mm/ - 3"
Filter Diam (C) - 149mm
Neck Length (D) - 50mm
Overall Length (E) - 190mm
BHP Rating - 300







Maxogen Air Filter 78mm Maxogen Air Filter 78mm Ref: JC60/78
I/D Neck Fitting (A) - 78mm/ - 3"
O/D Neck Fitting (B) - 81mm/ - 3" 3/16
Filter Diam (C) - 149mm
Neck Length (D) - 44mm
Overall Length (E) - 186mm
BHP Rating - 310







Maxogen Air Filter 86mm Maxogen Air Filter 86mm Ref: JC60/86
I/D Neck Fitting (A) - 86mm/ - 3" 3/8
O/D Neck Fitting (B) - 89mm/ - 3" 1/2
Filter Diam (C) - 180mm
Neck Length (D) - 53mm
Overall Length (E) - 213mm
BHP Rating - 480







Maxogen Air Filter 99mm Maxogen Air Filter 99mm Ref: JC60/99
I/D Neck Fitting (A) - 99mm/ - 3" 15/16
O/D Neck Fitting (B) - 102mm/ - 4"
Filter Diam (C) - 180mm
Neck Length (D) - 50mm
Overall Length (E) - 210mm
BHP Rating - 520
